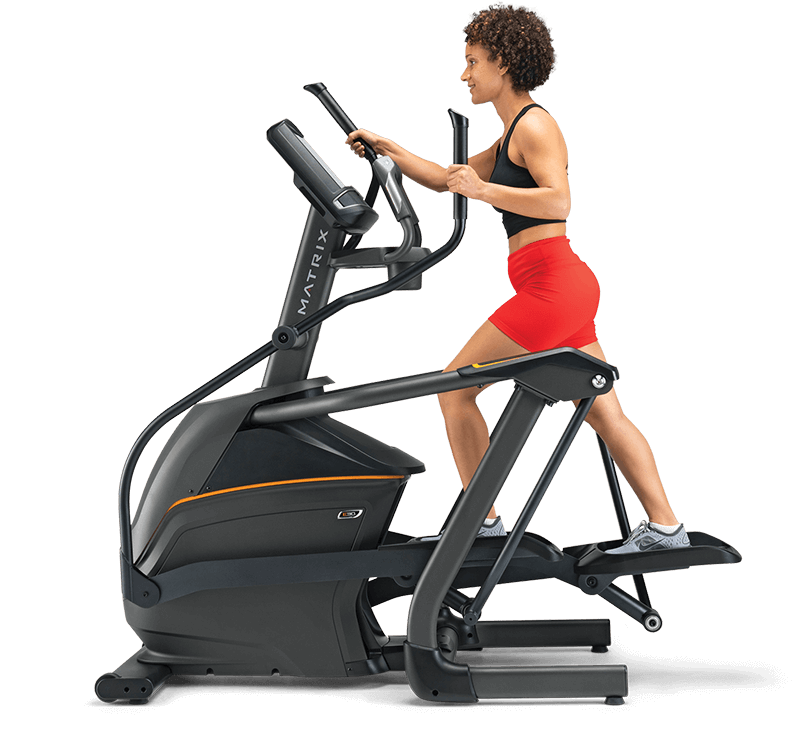

MATRIX Elliptical E30

Created to fit your home like no other, our compact suspension elliptical delivers a harmony of design and natural movement for the most comfortable, smoothest elliptical experience in the industry. Our E30 Elliptical includes our exclusive Suspension Elliptical™ Technology.


-
SMALL AND HEFTY CENTER-DRIVE ELLIPTICAL
Our conveniently compact elliptical design fits your home with minimal disruption, while thoughtful engineering provides smooth performance, natural movement and unmatched ergonomic comfort.
-
SMOOTH NATURAL STRIDE
Striding on the E30 follows a 20" elliptical path. This is a natural fit for most adults, although not for people who are especially short. Resistance comes from a 23.1-pound flywheel. Trainees get 20 resistance options with easy digital control.
-
LOWER AND UPPER BODY WORKOUTS
For the upper body, the Matrix E30 gives two options: use the resistance of moving handlebars, or keep still and grip the cushioned stationar bars. Handlebars on the E30 have a basic straight design.
| STRIDE LENGTH | 51 cm / 20” |
| RESISTANCE SYSTEM | ECB magnetic braking system |
| STEP-ON HEIGHT | 23 cm / 9.1” |
| RESISTANCE RANGE | 20 levels, electronically adjustable |
| POWER REQUIREMENTS | 120 V AC power, 15 A circuit (voltage may vary outside the USA) |
| PEDAL TYPE | Oversized |
| POWER INCLINE | N/A |
| PEDAL SPACING | 6.35 cm / 2.5” |
| MAX USER WEIGHT | 147 kg / 325 lbs |
| HANDLEBAR DESIGN | Dual action, stationary with resistance toggles and heart rate grips |
| FRAME TYPE | Suspension Elliptical Trainer |
| FLYWHEEL WEIGHT | 10.5 kg / 23.1 lbs |
| EXTRAS | Water bottle holder, accessory tray |
| ASSEMBLED WEIGHT | 126 kg / 278 lbs |
| ASSEMBLED DIMENSIONS | 148 x 73 x 166 cm / 58” x 29” x 65” (Active footprint: 175 x 73 x 172 cm /68.9” x 29” x 68”) |
| DISPLAY | 8.5” extra-wide blue LCD (22 cm) |
| WIFI ENABLED | No |
| BLUETOOTH ENABLED | Connect to popular training and coaching apps; connect wireless heart rate monitor |
| HDMI PORT | No |
| USB PORT | Internal USB port for software updates |
| SPEAKERS | No |
| CONSOLE APPS | No |
| PASSPORT READY | No |
| VIAFIT CONNECTIVITY | No |
| HEART RATE | Bluetooth wireless heart rate |
| CONSOLE EXTRAS | Integrated reading rack, energy saver mode |
| WORKOUTS | 5 total — manual, intervals, fat burn, target heart rate, Sprint 8 |
| DISPLAY FEEDBACK | Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate,calories, METS, speed, resistance |
| ASSEMBLED WEIGHT | 3.5 kg / 8 lbs. |
| DISPLAY | 10” class capacitive touchscreen (26 cm) |
| WIFI ENABLED | ViewFit Connectivity, entertainment apps, software updates |
| BLUETOOTH ENABLED | Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor |
| HDMI PORT | No |
| USB PORT | Front: Use to access media from compatible devices and to install software updates. |
| SPEAKERS | 3 Watt |
| CONSOLE APPS | My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market) |
| PASSPORT READY | No |
| VIAFIT CONNECTIVITY | Yes |
| HEART RATE | Bluetooth wireless heart rate, Bluetooth heart rate strap included |
| CONSOLE EXTRAS | Integrated reading rack, energy saver mode, audio in/out |
| PROGRAMS | 12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, VirtualActive American Northeast, Virtual Active Northern Rockies, iFit, custom |
| WORKOUT FEEDBACK | Time elapsed, time goal, time remaining, clock, miles /kilometers, RPM, current speed (MPH/KPH), pace, averagepace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance |
| ASSEMBLED WEIGHT | 4.5 kg / 10 lbs. |
| DISPLAY | 16” class HD capacitive touchscreen (40 cm) |
| WIFI ENABLED | ViewFit Connectivity, entertainment apps, software updates |
| BLUETOOTH ENABLED | Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor |
| HDMI PORT | Connect streaming media devices, phones or tablets |
| USB PORT | Front: Use to access media from compatible devices and to install software updates. Rear: Not active |
| SPEAKERS | 5 Watt |
| CONSOLE APPS | My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook,Twitter, Instagram, MyFitnessPal, Weather, Web Browser,Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat,YouKu, Weibo, Iqiyi, NetEase (other apps vary by market) |
| PASSPORT READY | No |
| VIAFIT CONNECTIVITY | Yes |
| HEART RATE | Bluetooth wireless heart rate, Bluetooth heart rate strap included |
| CONSOLE EXTRAS | Integrated reading rack, energy saver mode, audio in/out |
| PROGRAMS | 13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, VirtualActive American Northeast, Virtual Active Northern Rockies, iFit, custom |
| WORKOUT FEEDBACK | Time elapsed, time goal, time remaining, clock, miles /kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour,METS, resistance, last resistance |
| ASSEMBLED WEIGHT | 5.5 kg / 12 lbs. |
A SMOOTH, DYNAMIC FULL-BODY WORKOUT

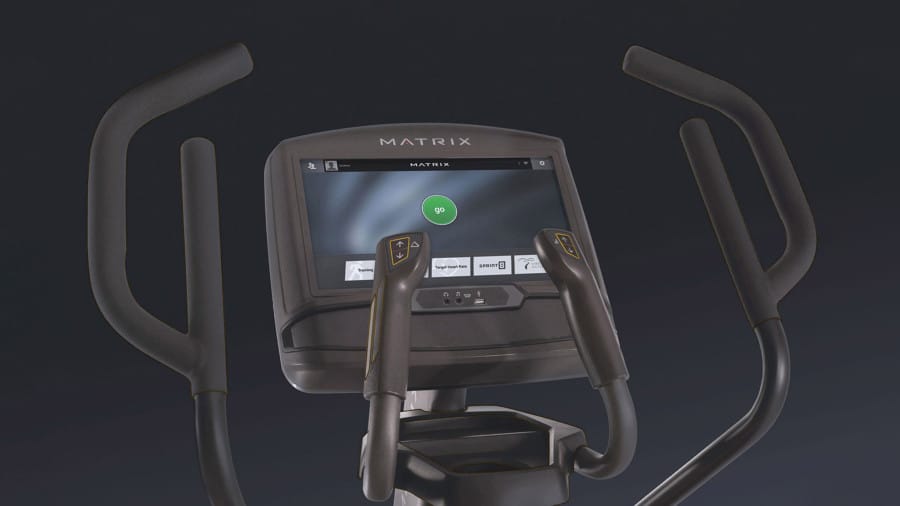

Our 16″ console features a brilliant HD touchscreen display to bring your virtual journeys, movies, and videos to life. Includes WiFi, Bluetooth, and an HDMI port to stream whatever moves you.


-
BLUETOOTH ENABLED
Connect your wireless headphones and the included Bluetooth heart rate monitor. Connect to popular training apps via Bluetooth FTMS.
-
WI-FI ENABLED
Connect your console via WiFi for software updates, web browsing and entertainment apps
-
HDMI PORT
Connect your phone or tablet via HDMI to mirror your device on the high-definition screen. Or play your favorite apps from your streaming media device.
-
MY MEDIA
Play music and video content on the console by connecting your mobile device to the console via USB. Compatible with most Windows and Android phones, tablets and MP3 players.
-
WEB BROWSER
Includes a web browser to search your favorite sites.
-
WORKOUT PROGRAMS
Keep every workout fresh with metric-driven cardio programs, create your own custom workouts, and repeat workouts automatically saved in your workout calendar.
-
5-WATT SPEAKERS
Our best speakers are integrated to give you the option of listening to your shows, movies, music and programs without headphones.
-
ENERGY SAVER MODE
After 15 minutes of inactivity, the console switches to sleep status, which draws less energy.


Convenience Features

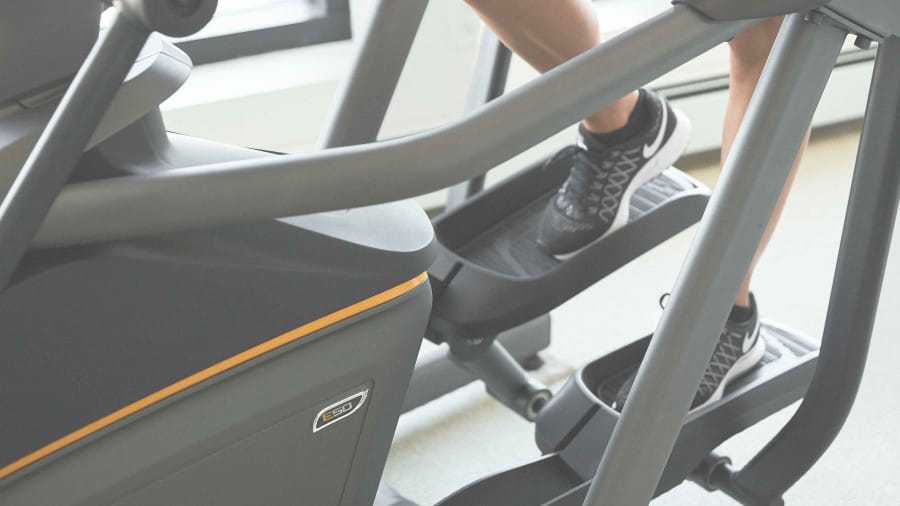

Includes a water bottle holder, accessory tray, heart rate grips, resistance toggles, multi-grip dual-action handlebars and oversized pedals with cushioned inserts for a comfortable, convenient exercise experience.


CONNECT IN A POWERFUL NEW WAY
Now advanced Bluetooth can connect your smart Ascent Trainer to your favorite fitness apps. That means you can compete against exercise enthusiasts from around the world, bringing your workout to life like never before.
Bluetooth heart rate monitor included with purchase.


COMPACT DESIGN
A compact footprint makes it easy to integrate our elliptical into your home with minimal rearranging, even when space is limited.

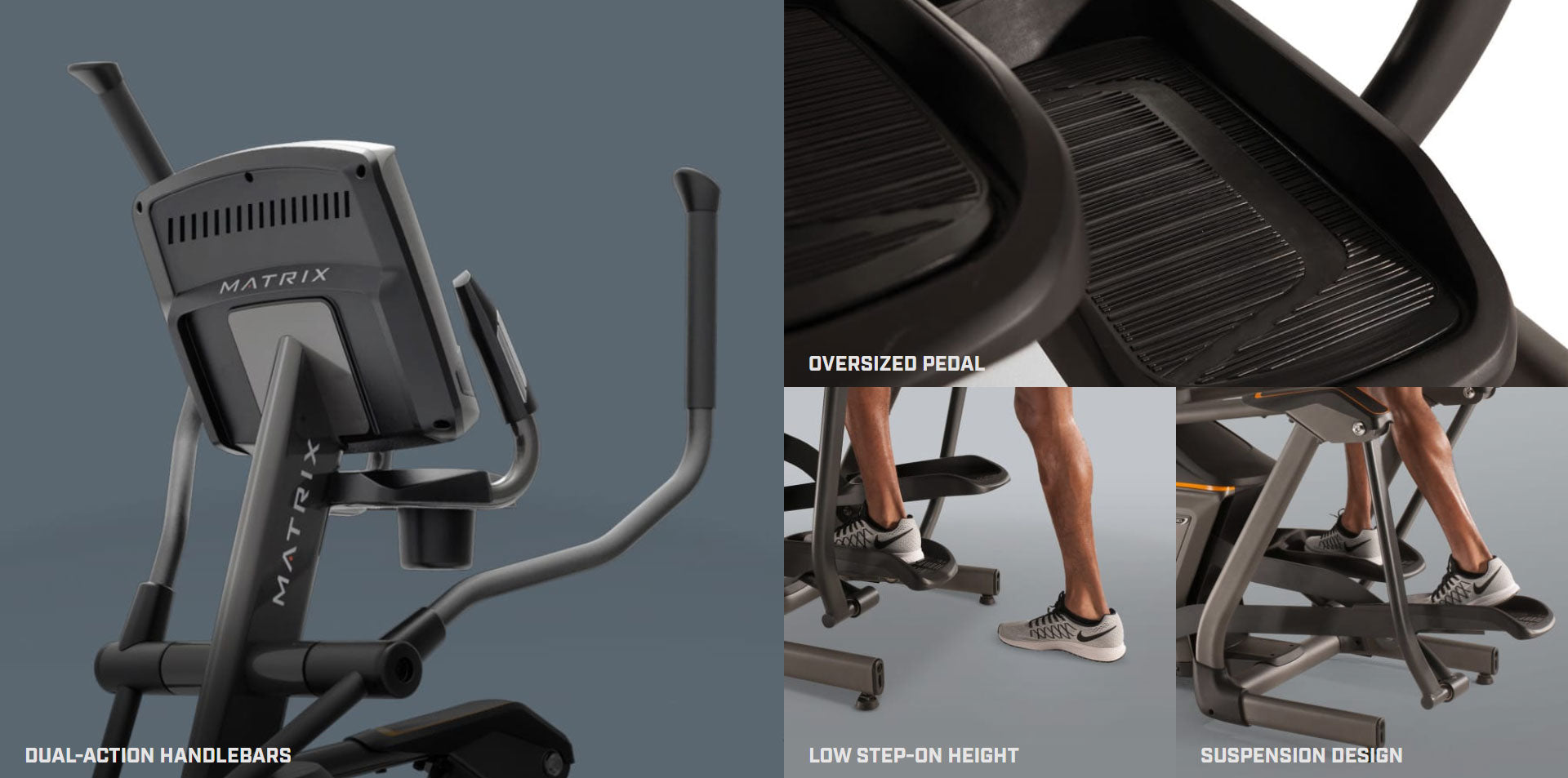

Smart Ergonomics
An ideal stride length and optimized pedal spacing provide comfortable movement for users of all sizes, a low step-on height of just 23 cm / 9.1" offers easy access, dual-action handlebars fit the hand naturally, and oversized pedals make even long workouts comfortable.


VIRTUAL ACTIVE IMMERSIVE WORKOUTS
Experience an immersive workout with high-definition destination footage synced to the speed of your workout. Includes two Virtual Active courses.
OUR TECHNOLOGIES


Johnson Drive System
The Johnson Drive System helps you stay in perfect rhythm with a quiet, durable and responsive continuous-duty drive system that recalibrates with each footfall.


SPRINT8
This scientifically validated high-intensity interval training program burns fat and builds muscle in short workouts that anyone can fit into their schedule.
